Description

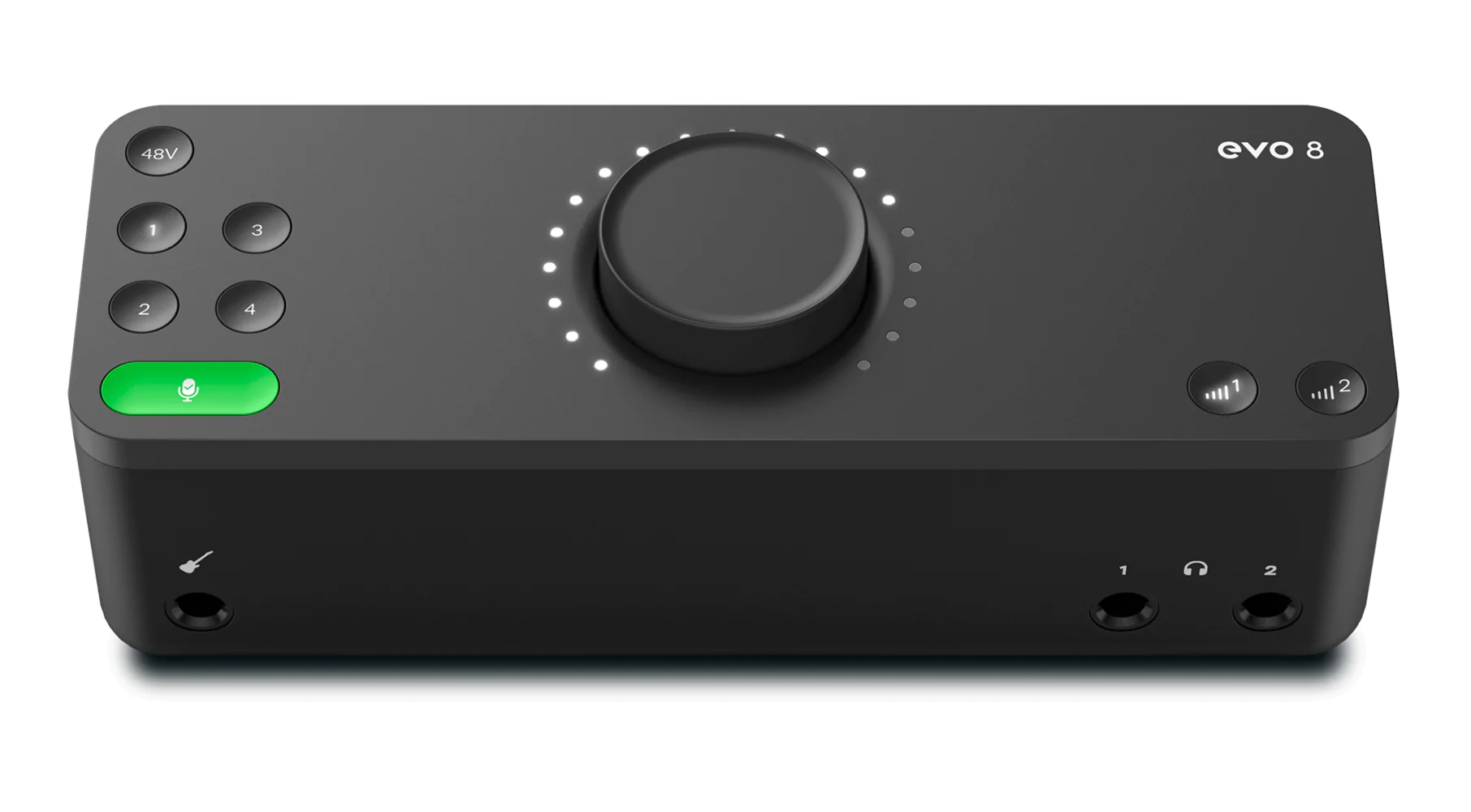

AUDIENT EVO 8 USB AUDIO INTERFACE
A new player in the market, the EVO8 presents an innovative solution for Smaart users looking for a compact 4 channel interface. Its form factor is extremely pack friendly, with only a single control knob on the interface – it has very few breakable parts.
The device features 6 total inputs; 4 XLR/TRS combo inputs and 2, easy to configure, internal loopback inputs. There is no need for an external loop back cable for referencing Smaarts signal generator.
A key feature of all Audient EVO devices are their integration with Smaart (v9.1+). The phantom power and gain control for EVO preamps are controllable directly from the Smaart interface. This allows Smaart users of the EVO 4, 8, or 16 to enable ‘gain-tracking’ after calibrating their inputs for SPL. With gain tracking enabled, you can adjust the input gain of EVO preamps without losing SPL calibration. Smaart will automatically adjust the calibration to reflect the new dB offset. In tandem with the EVO Control application, all EVO input and output settings can be adjusted, and recalled, digitally.
The EVO 8 is a great choice for Smaart users who wish to perform spectrum and transfer function live averages, deploying up to 4 measurement microphones, with the added benefit of not needing to physically control the device – all relevant setting parameters can be accessed via the EVO control application.
Features:

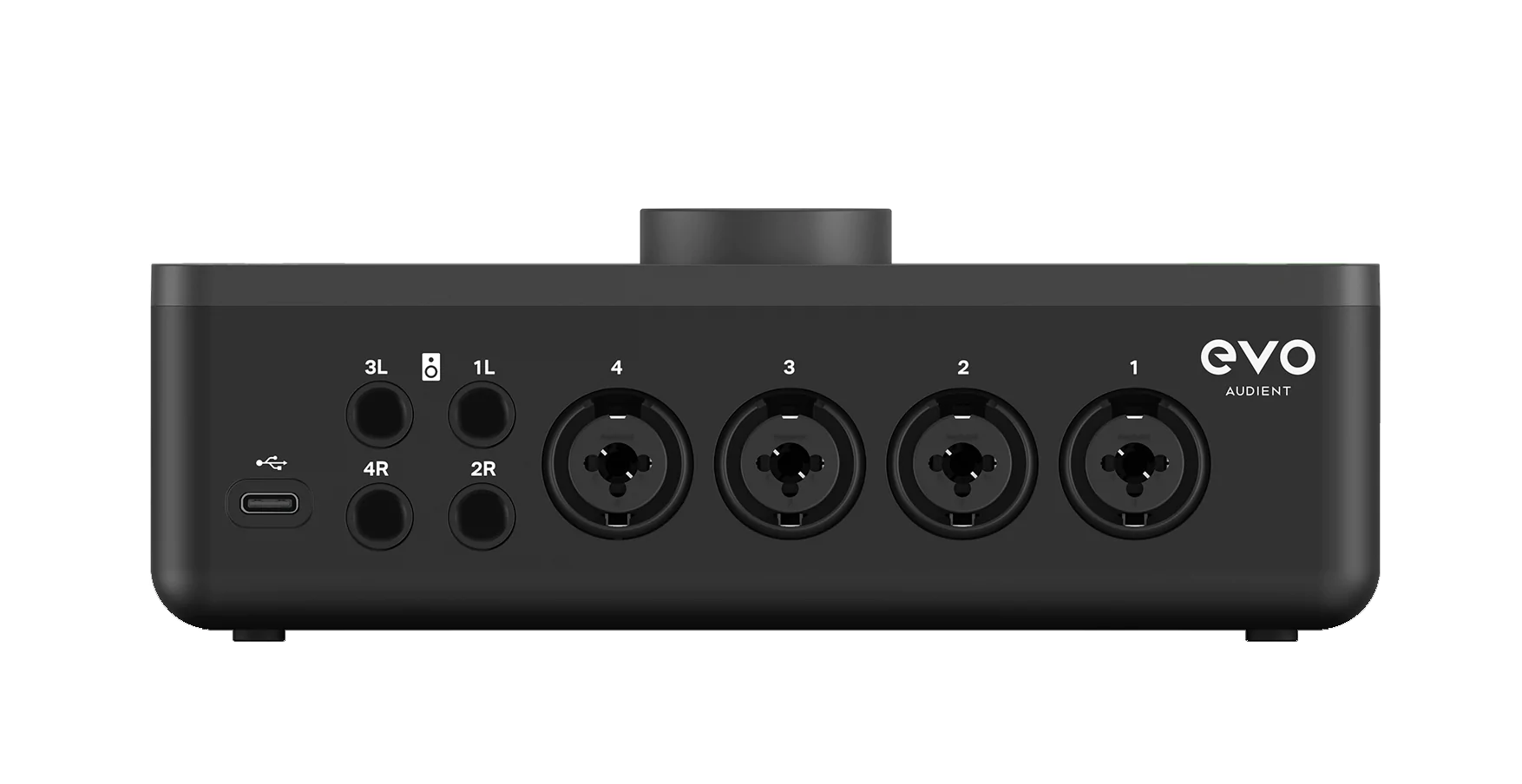

- 4 XLR/TRS combo jacks
- 1 dedicated line input (defeats combo input 1 when connected)
- 4 rear line outputs

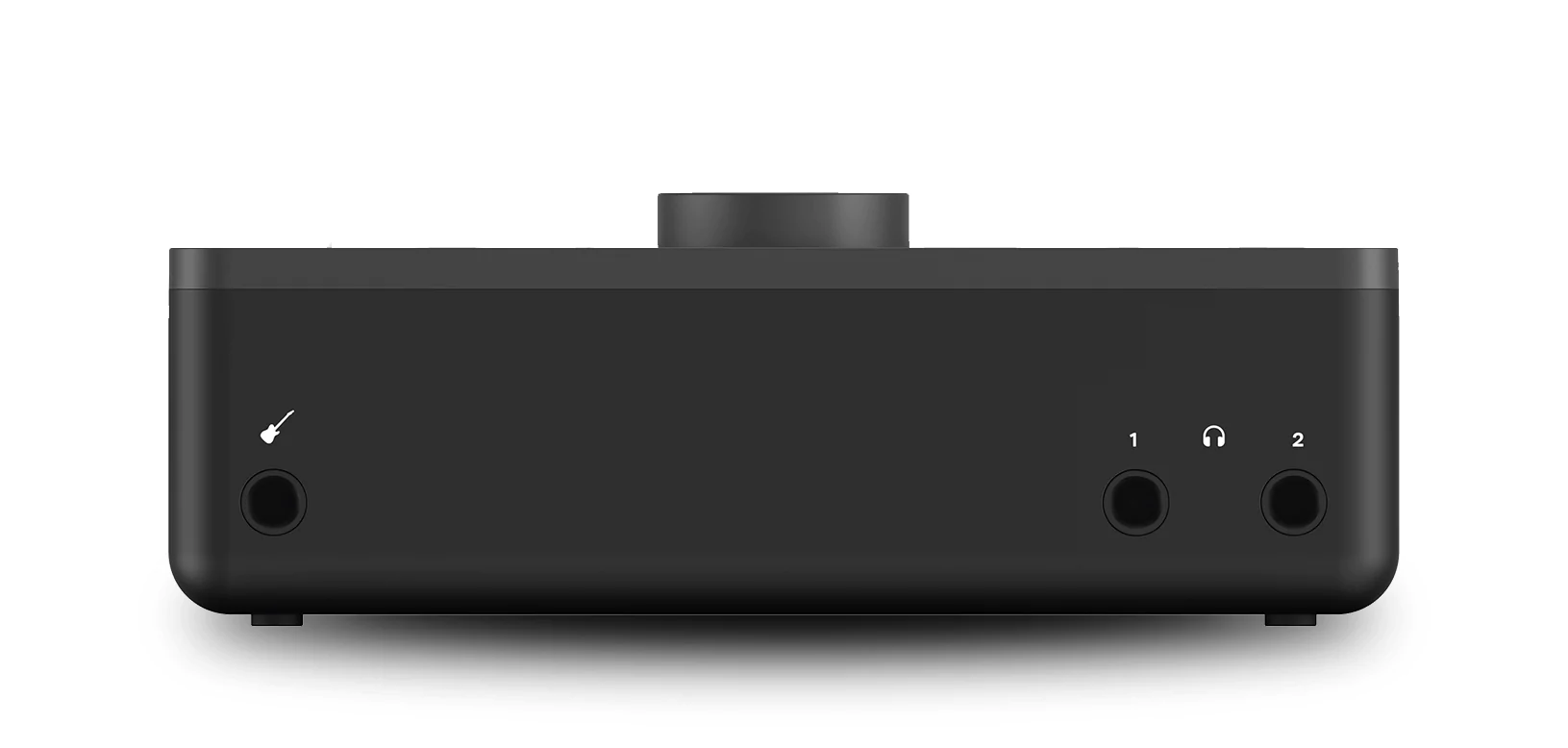

- 2 front headphone outputs
- Internal loopback
- Software Controllable
- 44.1kHz, 48kHz, 88.2kHz, 96kHz sample rate support
4 XLR/TRS Combination Inputs:
- Max. Input Level (XLR): 16dBu, 58dB of gain range
- Max. Input Level (TRS): 10dBu, 58dB of gain range with -10dB pad
Dimensions:
- LxWxH: 7.5″x2.75″x2.25″ (approx. 19x7x6 centimeters)
- Weight: 1.04 lbs
System Requirements Windows:
- Windows 7+
- PC or Laptop manufactured after January 2006
- Intel Core 2 @1.6Ghz, or AMD equivalent
- 1GB RAM minimum
System Requirements MacOS:
- OSX: 10.7 (Lion) or later
- Intel CPU
- 1 GB RAM minimum
For complete product specifications, please visit the manufacturer website HERE
