Description

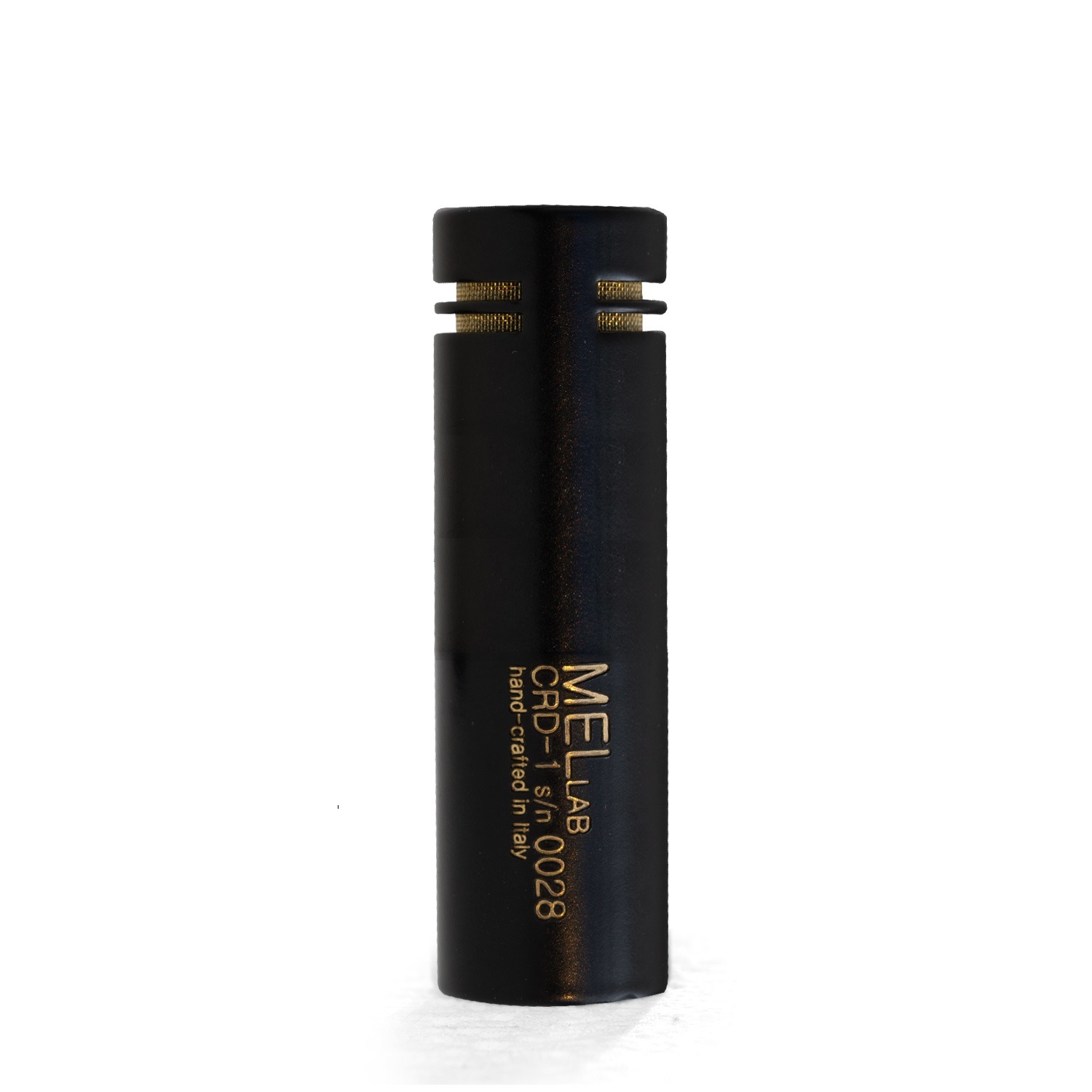

pre-polarized cardioid condenser microphone 48V
Polarity: a positive pressure variation on the diaphragm produces a positive voltage at pin 2 of the XLR
Polar response Cardioid
Free field frequency response, 0°: 20-20000 Hz (see graph)
Sensitivity (@ 1kHz; +/-2 dB) 15.8 mV/Pa [-36 dB re 1 V/Pa]
Max SPL (THD<3 %) 136 dB SPL
Noise 19 dBA SPL equiv.
Powering 48V [5 mA] phantom power
Temperature coeff. +0.035 dB/°C
Operating temperature range -10 °C to +50 °C (14 to 122 °F)
Balanced output impedance 30 ohm
Weight 56 g
Length 64 mm
