Description

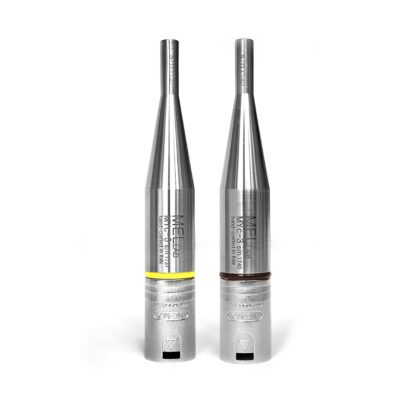

Omni-directional pre-polarized condenser microphone 48V
Units selected with sensitivity within +/- 0.5 dB between 10 Hz and 20 kHz.
Polarity: a positive pressure variation on the diaphragm produces a positive voltage at pin 2 of the XLR
Free field frequency response, 0°, +/- 1dB: 10-10000 Hz
Free field frequency response, 0°, +/- 2dB: 10-22000 Hz
Sensitivity (@ 250Hz; +/-2 dB) 15 mV/Pa [-36.5 dB re 1 V/Pa]
Max SPL (THD<3 %) 140 dB SPL
Noise <23 dBA SPL equiv. (typical 22 dBA)
Powering 48V [5 mA] phantom power
Temperature coeff. +0.035 dB/°C
Operating temperature range -10 °C to +50 °C (14 to 122 °F)
Balanced output impedance 30 ohm
Weight 68 g
Length 116 mm
