Sale!
Smaart SPL
Smaart SPL - Image 2
Smaart SPL - Image 3
Smaart SPL - Image 4
Smaart SPL - Image 5
Smaart SPL - Image 6
Smaart SPL - Image 7

Smaart SPL

EURO 130,68 – EURO 329,67

Smaart SPL offers the same complete SPL measurement toolset from Smaart v9 ST in a purpose-built standalone package. Smaart SPL provides a powerful solution for monitoring, metering, and logging SPL – with a format and price point more accessible to users who don’t require the real-time frequency and impulse response mode analysis capabilities of our flagship Smaart v9 ST software.

Significant: For accurate SPL measurements, this product requires a microphone calibrator, a suitable acoustic test & measurement microphone, and a microphone preamp / audio interface.

Each licence can be installed on two separate computers simultaneously. If you wish to install your licence on more machines at the same time, you can do so by purchasing “additional installs.” This option saves a little, as an additional install costs less than half the price of a full licence. This approach makes sense for larger companies that need to equip multiple machines with a SMAART licence.

In the dropdown menu below, you can select the licence type applicable to you.

Frequently Bought Together

EMX-7150 microphone kit

EMX-7150 microphone + clamp + adapter screw + WS-7XL Windscreen + calibration data download on my.iSEMcon.com - pouch

SC-1

SC-1 sound calibrator, 94dBspl, 110dBspl - including pouch. Please choose matching adaptors for your microphone. Available sizes are 1/2" (10EaZy), 1/4" (EMX 7150), and 10mm (RTA 420). Custom sizes on special order. Please ask for the price and delivery time.

Microphone adaptor not included. Please order separately.

CA 1⁄4 calibration adapter

1/4" adapter for the iSEMcon SC-1 microphone calibrator. Fits EMX-7150.

CA 1⁄2 calibration adapter

CA 1⁄2 calibration adapter for 1/2" microphones

CA 10 calibration adapter

10-millimeter adapter for the iSEMcon SC-1 microphone calibrator.  This adapter fits any measurement microphone with a 10mm head, including the Rational Acoustics RTA-420.

MYc-3 kit w/case

Omni-directional pre-polarized condenser microphone 48V

Polarity: a positive pressure variation on the diaphragm produces a positive voltage at pin 2 of the XLR

10EaZy Class 1

10EAZY CLASS 1

No hassle, no experience needed. Install the software, connect the dedicated hardware, and you are ready to go.

Full-featured software includes comprehensive minute-by-minute log files, the ability to create metadata using the "running order" functionality, and keeping notes for later using the "event log" feature. Our full-featured software comes with RTA in 1/1 oct full range or 1/3 oct low-frequency range.

Integrates into Smaart! The best of both worlds is available with one hardware.

10EAZY Class 2

10EAZY CLASS 2

No hassle, no experience needed. Install the software, connect the dedicated hardware, and you are ready to go.

Full-featured software includes comprehensive minute-by-minute log files, the ability to create metadata using the "running order" functionality, and keeping notes for later using the "event log" feature. Our full-featured software comes with RTA in 1/1 oct full range or 1/3 oct low-frequency range.

Integrates into Smaart! The best of both worlds is available with one hardware.

SKU: N/A Category: Tag: Brand:

Description

Key Features

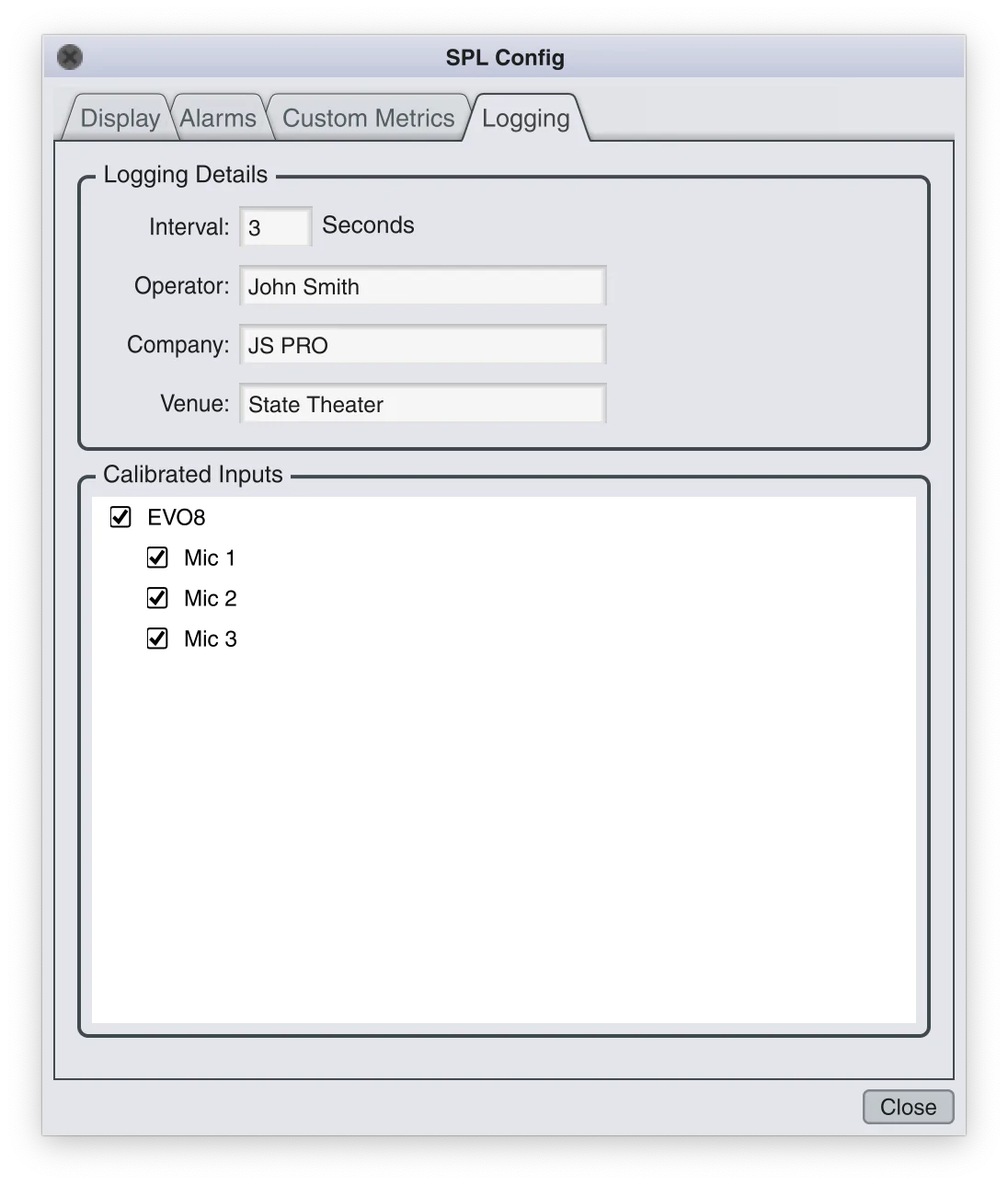

  • Comprehensive SPL monitoring and logging of any number of calibrated inputs simultaneously
  • SPL A, C, & unweighted Fast and Slow, Peak A, C, unweighted or Peak Octave banded frequency center

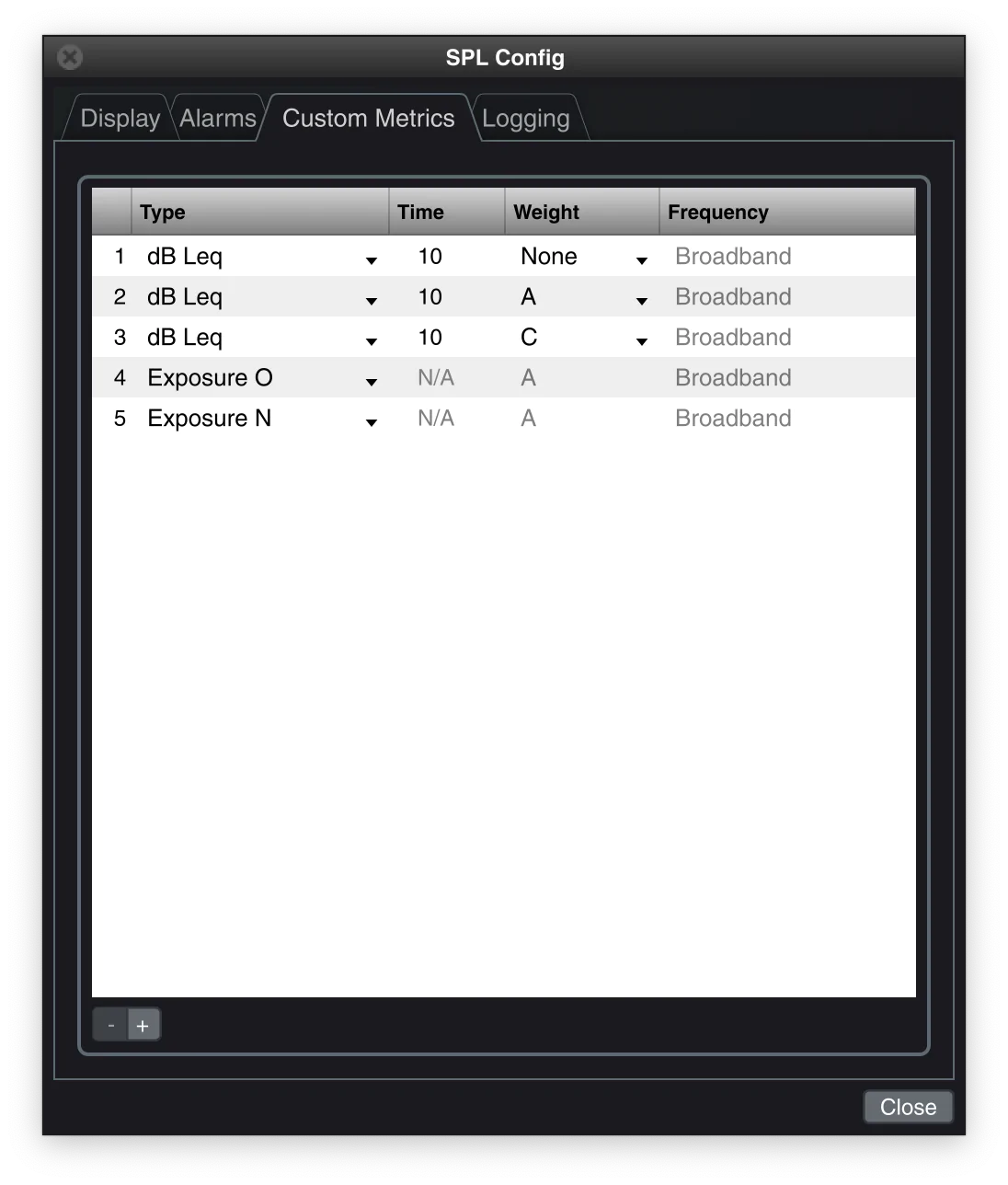

  • Leq A, C, unweighted or Octave banded frequency center with the user-definable period from 1 second to 24 hours
  • C-A bass ratio calculation
  • OSHA and NIOSH exposure calculation
  • L10, L50, and L90 calculation
  • 10 EaZy integration for Class 1 or 2 compliant SPL Measurement
    • Integrated Maximum Average Meter (MAM) display
    • Support for multiple 10 EaZy systems connected at once

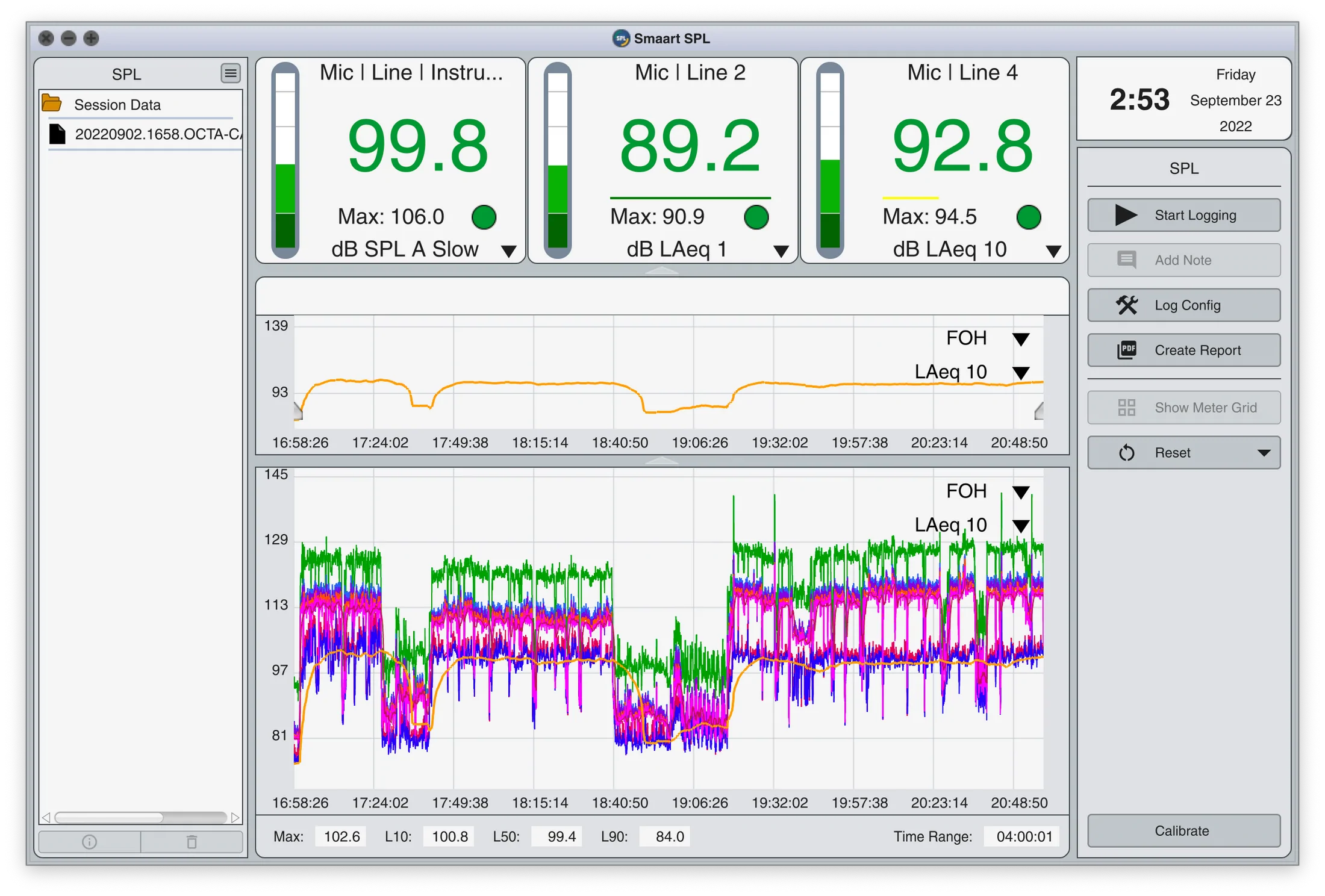

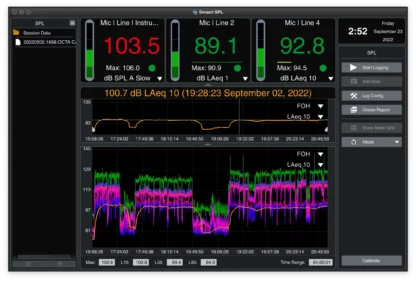

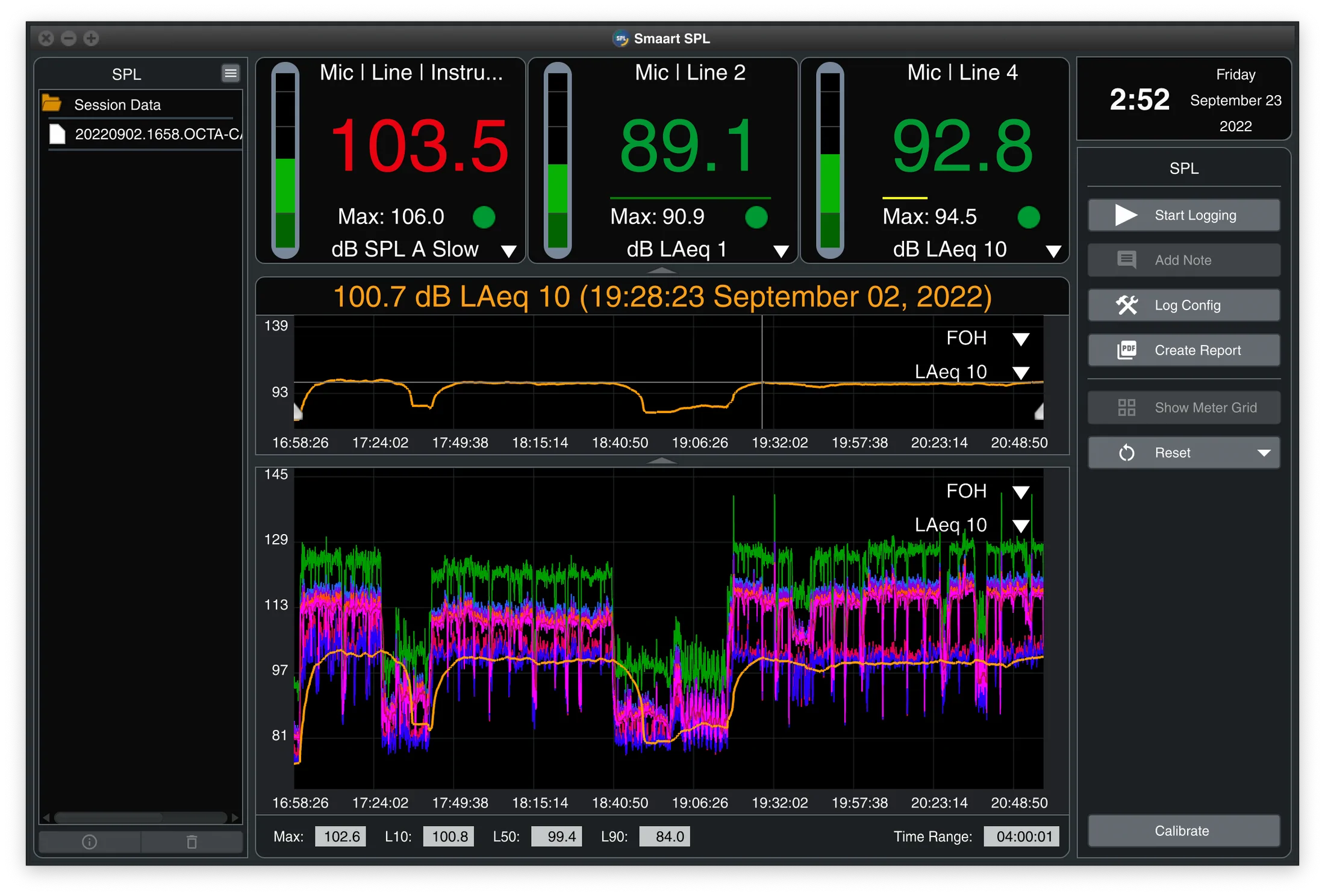

  • User-definable SPL grid window for viewing various SPL metrics simultaneously
  • SPL History graph for navigating SPL Log files

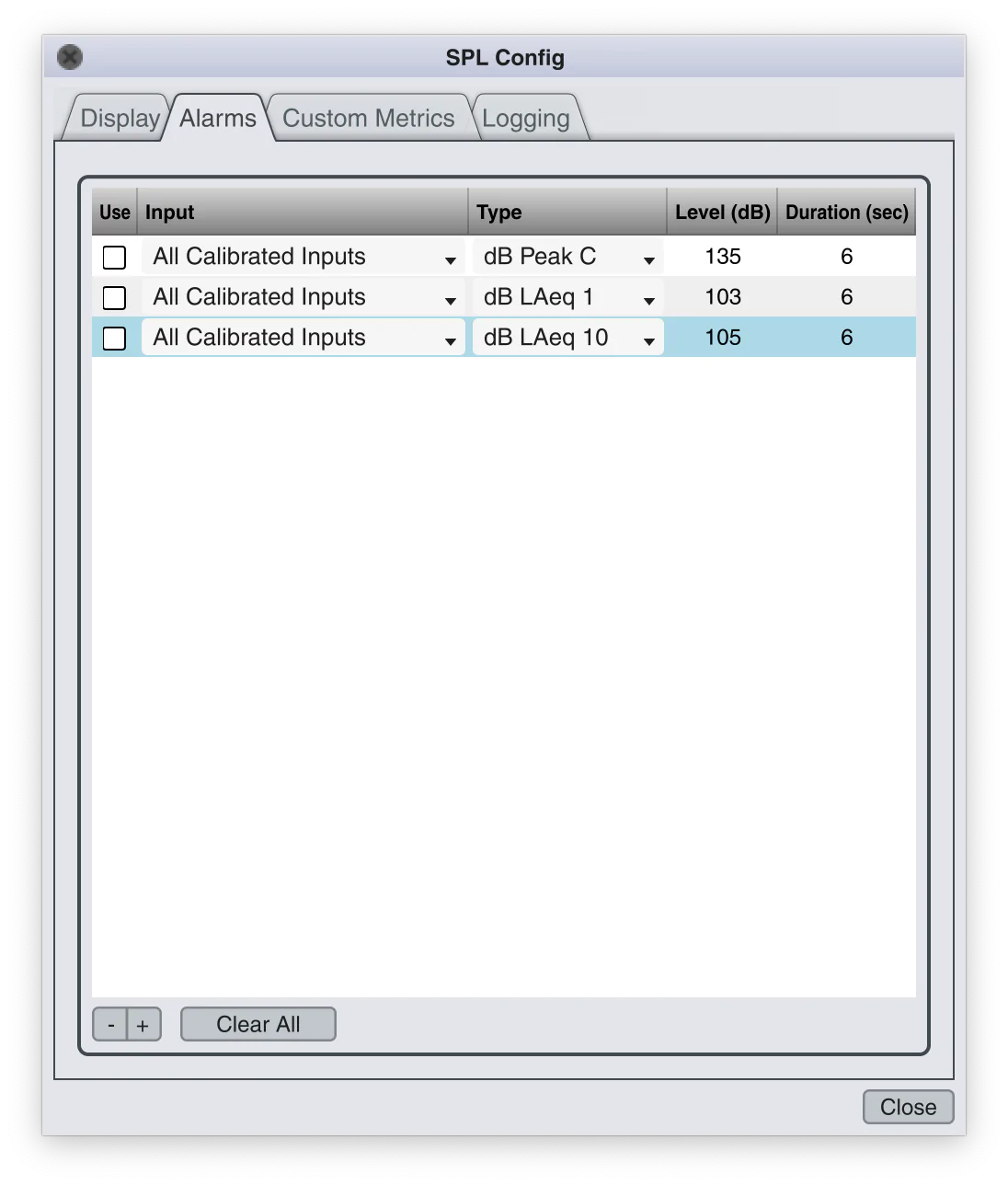

  • User definable SPL Alarms and ‘traffic light’ color display (green, yellow, red level definitions per SPL metric)
  • Remote viewing via a web browser (over LAN or Internet)

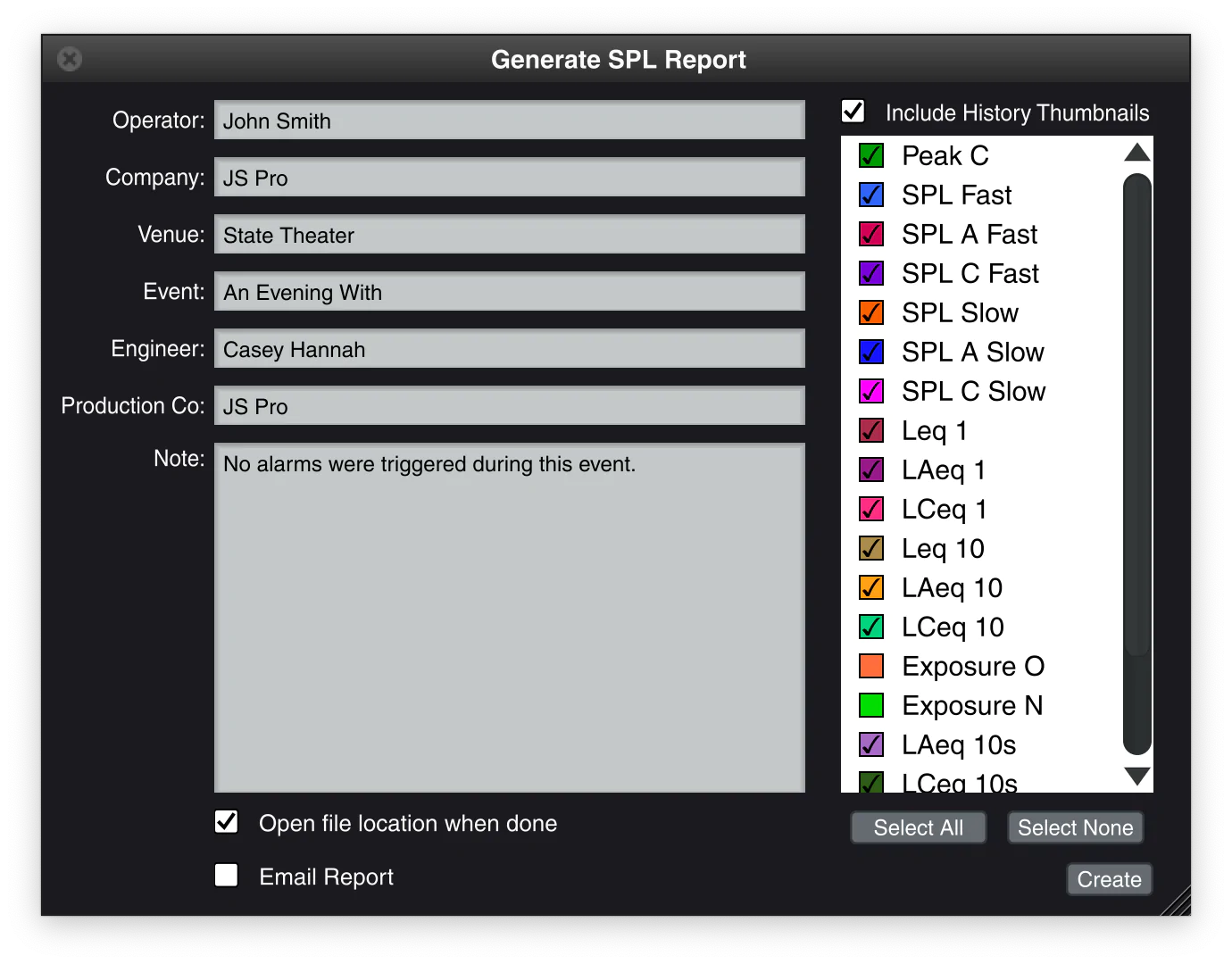

  • PDF report generation

Significant: For accurate SPL measurements, this product requires a microphone calibrator, a suitable acoustic test & measurement microphone, and a microphone preamp / audio interface.

Here´s a little video on how to choose the right mic / sound car combination

Additional information

License Type

SPL New License, SPL Additional Install
